[Docker] MinIO 객체 스토리지

이전 편에서는 mac에서 MinIO 객체 스토리지를 설치하는 방법에 대해서 알아봤습니다.

오늘은 Docker로 바로 올려서 MinIO을 쓸 수 있는 방법을 알아보도록 하겠습니다.

먼저 Docker가 설치되어 있어야 합니다.

혹시나 Docker가 설치되어 있지 않다면, 도커(Docker): 맥(Mac)으로 도커 설치하기 을 먼저 읽어보고 설치한 후에 다시 돌아오셔서 진행해주시면 됩니다.

1. 바탕화면에 우선 minio 폴더를 하나 생성해 줍니다.

kabby-MacBookPro:Desktop jeong$ pwd
/Users/jeong/Desktop
kabby-MacBookPro:Desktop jeong$ mkdir minio

2. 생성한 폴더 안에 docker-compose.yml을 받습니다.

version: '3.7'

# starts 4 docker containers running minio server instances. Each
# minio server's web interface will be accessible on the host at port
# 9001 through 9004.
services:
  minio1:
    image: minio/minio:RELEASE.2020-08-04T23-10-51Z
    volumes:
      - data1-1:/data1
      - data1-2:/data2
    ports:
      - "9001:9000"
    environment:
      MINIO_ACCESS_KEY: minio
      MINIO_SECRET_KEY: minio123
    command: server http://minio{1...4}/data{1...2}
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"]
      interval: 30s
      timeout: 20s
      retries: 3

  minio2:
    image: minio/minio:RELEASE.2020-08-04T23-10-51Z
    volumes:
      - data2-1:/data1
      - data2-2:/data2
    ports:
      - "9002:9000"
    environment:
      MINIO_ACCESS_KEY: minio
      MINIO_SECRET_KEY: minio123
    command: server http://minio{1...4}/data{1...2}
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"]
      interval: 30s
      timeout: 20s
      retries: 3

  minio3:
    image: minio/minio:RELEASE.2020-08-04T23-10-51Z
    volumes:
      - data3-1:/data1
      - data3-2:/data2
    ports:
      - "9003:9000"
    environment:
      MINIO_ACCESS_KEY: minio
      MINIO_SECRET_KEY: minio123
    command: server http://minio{1...4}/data{1...2}
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"]
      interval: 30s
      timeout: 20s
      retries: 3

  minio4:
    image: minio/minio:RELEASE.2020-08-04T23-10-51Z
    volumes:
      - data4-1:/data1
      - data4-2:/data2
    ports:
      - "9004:9000"
    environment:
      MINIO_ACCESS_KEY: minio
      MINIO_SECRET_KEY: minio123
    command: server http://minio{1...4}/data{1...2}
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"]
      interval: 30s
      timeout: 20s
      retries: 3

## By default this config uses default local driver,
## For custom volumes replace with volume driver configuration.
volumes:
  data1-1:
  data1-2:
  data2-1:
  data2-2:
  data3-1:
  data3-2:
  data4-1:
  data4-2:

3. 해당 폴더에서 docker-compose pull 명령어를 실행시켜줍니다.

kabby-MacBookPro:minio jeong$ docker-compose pull
Pulling minio1 ... done
Pulling minio2 ... done
Pulling minio3 ... done
Pulling minio4 ... done

* 만약 docker-compose pull을 했을 때 아래와 같은 에러가 나온다면, Docker 로그인을 해준 다음에 다시 docker-compose pull을 해줍니다.

kabby-MacBookPro:minio jeong$ docker-compose pull
Pulling minio1 ... error
Pulling minio2 ... error
Pulling minio3 ... error
Pulling minio4 ... error

ERROR: for minio4  Get https://registry-1.docker.io/v2/minio/minio/manifests/RELEASE.2020-08-04T23-10-51Z: toomanyrequests: too many failed login attempts for username or IP address

ERROR: for minio2  Get https://registry-1.docker.io/v2/minio/minio/manifests/RELEASE.2020-08-04T23-10-51Z: toomanyrequests: too many failed login attempts for username or IP address

ERROR: for minio1  Get https://registry-1.docker.io/v2/minio/minio/manifests/RELEASE.2020-08-04T23-10-51Z: toomanyrequests: too many failed login attempts for username or IP address

ERROR: for minio3  Get https://registry-1.docker.io/v2/minio/minio/manifests/RELEASE.2020-08-04T23-10-51Z: toomanyrequests: too many failed login attempts for username or IP address
ERROR: Get https://registry-1.docker.io/v2/minio/minio/manifests/RELEASE.2020-08-04T23-10-51Z: toomanyrequests: too many failed login attempts for username or IP address
Get https://registry-1.docker.io/v2/minio/minio/manifests/RELEASE.2020-08-04T23-10-51Z: toomanyrequests: too many failed login attempts for username or IP address
Get https://registry-1.docker.io/v2/minio/minio/manifests/RELEASE.2020-08-04T23-10-51Z: toomanyrequests: too many failed login attempts for username or IP address
Get https://registry-1.docker.io/v2/minio/minio/manifests/RELEASE.2020-08-04T23-10-51Z: toomanyrequests: too many failed login attempts for username or IP address

4. 해당 폴더에서 docker-compose up 명령어를 실행시켜줍니다.

kabby-MacBookPro:minio jeong$ docker-compose up
Creating network "minio_default" with the default driver
Creating volume "minio_data1-1" with default driver
Creating volume "minio_data1-2" with default driver
Creating volume "minio_data2-1" with default driver
Creating volume "minio_data2-2" with default driver
Creating volume "minio_data3-1" with default driver
Creating volume "minio_data3-2" with default driver
Creating volume "minio_data4-1" with default driver
Creating volume "minio_data4-2" with default driver
Creating minio_minio4_1 ... done
Creating minio_minio1_1 ... done
Creating minio_minio2_1 ... done
Creating minio_minio3_1 ... done
Attaching to minio_minio4_1, minio_minio3_1, minio_minio1_1, minio_minio2_1
minio4_1  | Waiting for the first server to format the disks.
minio3_1  | Waiting for the first server to format the disks.
minio2_1  | Waiting for the first server to format the disks.
minio4_1  | Waiting for the first server to format the disks.
minio1_1  | Formatting 1st zone, 1 set(s), 8 drives per set.
minio3_1  | Waiting for the first server to format the disks.
minio2_1  | Waiting for the first server to format the disks.
minio1_1  | Waiting for all MinIO sub-systems to be initialized.. lock acquired
minio1_1  | Attempting encryption of all config, IAM users and policies on MinIO backend
minio1_1  | All MinIO sub-systems initialized successfully
minio1_1  | Waiting for all MinIO IAM sub-system to be initialized.. lock acquired
minio1_1  | Status:         8 Online, 0 Offline.
minio1_1  | Endpoint:  http://172.18.0.5:9000  http://127.0.0.1:9000
minio1_1  |
minio1_1  | Browser Access:
minio1_1  |    http://172.18.0.5:9000  http://127.0.0.1:9000
minio1_1  |
minio1_1  | Object API (Amazon S3 compatible):
minio1_1  |    Go:         https://docs.min.io/docs/golang-client-quickstart-guide
minio1_1  |    Java:       https://docs.min.io/docs/java-client-quickstart-guide
minio1_1  |    Python:     https://docs.min.io/docs/python-client-quickstart-guide
minio1_1  |    JavaScript: https://docs.min.io/docs/javascript-client-quickstart-guide
minio1_1  |    .NET:       https://docs.min.io/docs/dotnet-client-quickstart-guide
minio4_1  | Waiting for all MinIO sub-systems to be initialized.. lock acquired
minio4_1  | All MinIO sub-systems initialized successfully
minio4_1  | Waiting for all MinIO IAM sub-system to be initialized.. lock acquired
minio4_1  | Status:         8 Online, 0 Offline.
minio4_1  | Endpoint:  http://172.18.0.3:9000  http://127.0.0.1:9000
minio4_1  |
minio4_1  | Browser Access:
minio4_1  |    http://172.18.0.3:9000  http://127.0.0.1:9000
minio4_1  |
minio4_1  | Object API (Amazon S3 compatible):
minio4_1  |    Go:         https://docs.min.io/docs/golang-client-quickstart-guide
minio4_1  |    Java:       https://docs.min.io/docs/java-client-quickstart-guide
minio4_1  |    Python:     https://docs.min.io/docs/python-client-quickstart-guide
minio4_1  |    JavaScript: https://docs.min.io/docs/javascript-client-quickstart-guide
minio4_1  |    .NET:       https://docs.min.io/docs/dotnet-client-quickstart-guide
minio2_1  | Waiting for all MinIO sub-systems to be initialized.. lock acquired
minio2_1  | All MinIO sub-systems initialized successfully
minio2_1  | Status:         8 Online, 0 Offline.
minio2_1  | Endpoint:  http://172.18.0.4:9000  http://127.0.0.1:9000
minio2_1  |
minio2_1  | Browser Access:
minio2_1  |    http://172.18.0.4:9000  http://127.0.0.1:9000
minio2_1  |
minio2_1  | Object API (Amazon S3 compatible):
minio2_1  |    Go:         https://docs.min.io/docs/golang-client-quickstart-guide
minio2_1  |    Java:       https://docs.min.io/docs/java-client-quickstart-guide
minio2_1  |    Python:     https://docs.min.io/docs/python-client-quickstart-guide
minio2_1  |    JavaScript: https://docs.min.io/docs/javascript-client-quickstart-guide
minio2_1  |    .NET:       https://docs.min.io/docs/dotnet-client-quickstart-guide
minio2_1  | Waiting for all MinIO IAM sub-system to be initialized.. lock acquired
minio3_1  | Waiting for all MinIO sub-systems to be initialized.. lock acquired
minio3_1  | All MinIO sub-systems initialized successfully
minio3_1  | Waiting for all MinIO IAM sub-system to be initialized.. lock acquired
minio3_1  | Status:         8 Online, 0 Offline.
minio3_1  | Endpoint:  http://172.18.0.2:9000  http://127.0.0.1:9000
minio3_1  |
minio3_1  | Browser Access:
minio3_1  |    http://172.18.0.2:9000  http://127.0.0.1:9000
minio3_1  |
minio3_1  | Object API (Amazon S3 compatible):
minio3_1  |    Go:         https://docs.min.io/docs/golang-client-quickstart-guide
minio3_1  |    Java:       https://docs.min.io/docs/java-client-quickstart-guide
minio3_1  |    Python:     https://docs.min.io/docs/python-client-quickstart-guide
minio3_1  |    JavaScript: https://docs.min.io/docs/javascript-client-quickstart-guide
minio3_1  |    .NET:       https://docs.min.io/docs/dotnet-client-quickstart-guide

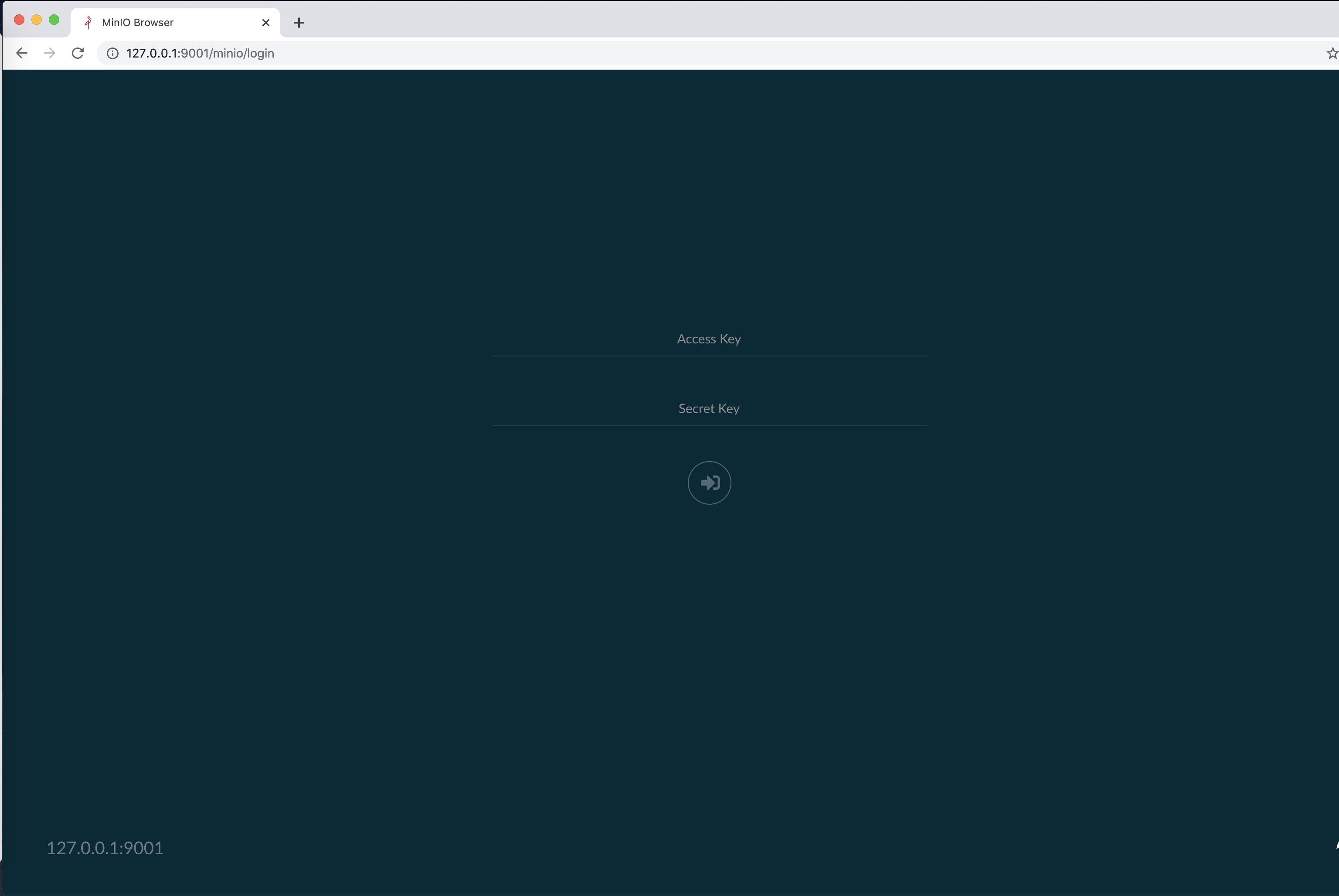

5. 브라우저 창에 http://127.0.0.1:9001/ 접속이 되는지 확인합니다.

5. Access Key : minio , Secret Key: minio123
